Objective

1) To create a DNS “A” record which is pointing to the EC2 instance created in default VPC default subnet. 2) When we do nslookup to the “A” record like server1.codeaprendiz.tk, it should resolve the public IP of the instance.

PRE-REQUISITE

1) First we need to own a domain. So go to the link https://my.freenom.com/ and register a domain. I registered codeaprendiz.tk

$ terraform init
$ terraform plan

Apply complete! Resources: 3 added, 0 changed, 0 destroyed.
.
.
.

Outputs:

devopslink-name-servers = [ “ns-1512.awsdns-61.org”, “ns-163.awsdns-20.com”, “ns-2026.awsdns-61.co.uk”, “ns-904.awsdns-49.net”, ] devopslink-public-zone-id = Z10390782TEJ7ISXDVZ22

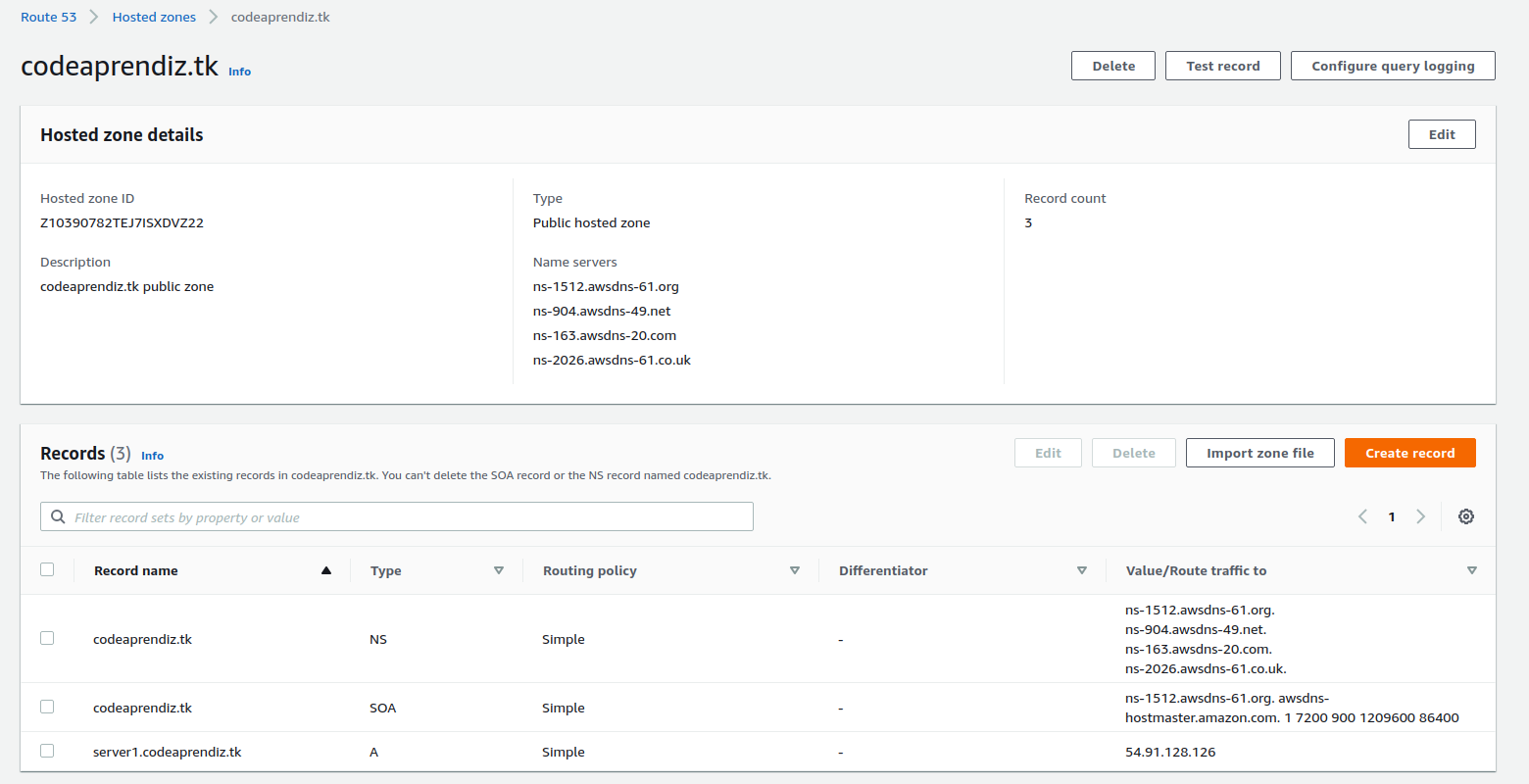

- Once applied. You will be able to see the hosted zone as follows

![](/images/terraform/task-022-route53-ec2/hosted-zone-window.png)

- And the EC2 instance as well

![](/images/terraform/task-022-route53-ec2/ec2-instance.png)

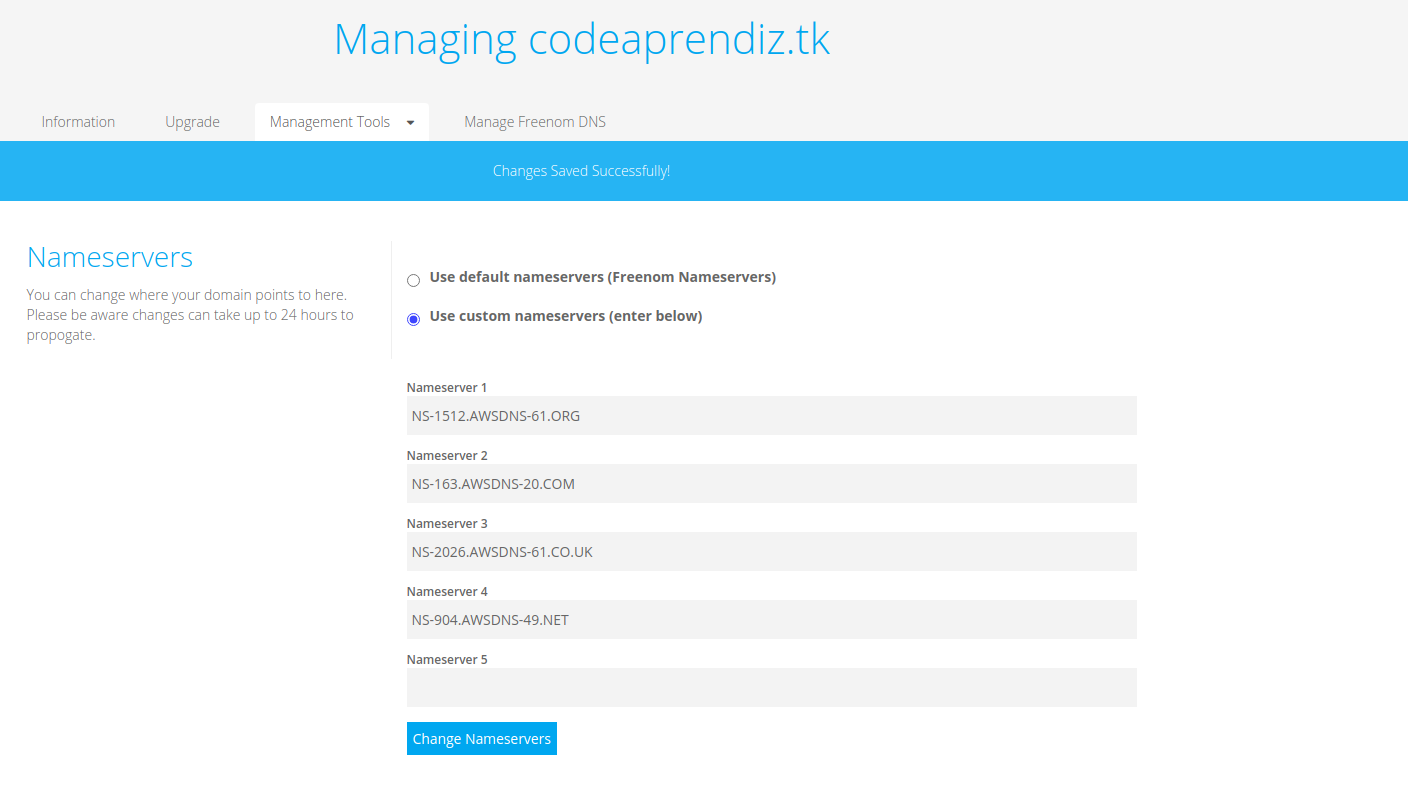

- Now you go the list of nameserver in the output. These nameservers know to what IP address our `A` record `server1.codeaprendiz.tk` resolves to.
  So we will need to go back to [https://my.freenom.com/](https://my.freenom.com/) and manage the domain `codeaprendiz.tk` (specifically go to
  Management Tools -> Nameservers) and give the list of these nameservers there so it know where to look. Once this is completed.

![](/images/terraform/task-022-route53-ec2/nameservers-config-window.png)


```bash
$ nslookup server1.codeaprendiz.tk
Server:         127.0.0.53
Address:        127.0.0.53#53

Non-authoritative answer:
Name:   server1.codeaprendiz.tk
Address: 54.91.128.126

$ dig server1.codeaprendiz.tk

; <<>> DiG 9.11.3-1ubuntu1.12-Ubuntu <<>> server1.codeaprendiz.tk
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 12751
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 65494
;; QUESTION SECTION:
;server1.codeaprendiz.tk.       IN      A

;; ANSWER SECTION:
server1.codeaprendiz.tk. 300    IN      A       54.91.128.126

;; Query time: 149 msec
;; SERVER: 127.0.0.53#53(127.0.0.53)
;; WHEN: Sat Aug 08 00:42:49 +04 2020
;; MSG SIZE  rcvd: 68
